If you are wondering how tall is a Land Rover Defender this guide is for you. The Defender 110 (L663) stands 1,967mm tall, i.e., 6 feet 5 inches. The Defender 90 is 1,969mm, which is a fraction taller than the 1,968mm of the standard Defender.
With the extended roofline, the Defender 130 is 1,975mm in length. These are unladen kerb figures taken from Land Rover’s own documentation. Add a roof rack, roof box or aerial, and you need to add to those numbers before driving into a multi-storey car park.
This is more important than you might think. The height of the barrier in most multi-storey car parks in the UK is between 1,900mm and 2,100mm.
A Defender 110 at 1,967mm clears 2,000mm barriers but not 1,900mm ones. With a Thule or Yakima roof box, you may be pushing 2200-2300mm. It’s a write-off waiting to happen on a low barrier.
Defender Height By Body Style:
| Variant | Height (unladen) | Height in feet/inches | Ground clearance |
| Defender 90 (L663) | 1,969mm | 6 ft 5.5 in | 226mm (8.9in) |
| Defender 110 (L663) | 1,967mm | 6 ft 5.4 in | 226mm (8.9in) |
| Defender 130 (L663) | 1,975mm | 6 ft 5.7 in | 225mm (8.9in) |
| Classic Defender 90 (pre-2016) | 1,965mm | 6 ft 5.3 in | 215mm (8.5in) |
| Classic Defender 110 (pre-2016) | 1,997mm | 6ft 6.6in | 215mm (8.5in) |
The L663 series is in fact shorter than the classic Defender 110. The old 110 reached a height of 1,997mm, or almost 2 metres, while the new platform reduced it to 1,967mm. If you are upgrading from an old to a new model, it is worth knowing.
Land Rover Defender 110 height is identical across diesel and petrol variants. Although the battery pack is located under the floor, the PHEV does not increase the height.
Land Rover Defender 90 height is 2mm taller than the 110 on paper. In practice, it doesn’t matter. Both will or will not pass the same obstacle.
Land Rover Defender Width Is Just As Important As Height:
Land Rover Defender dimensions are big in every direction.
| Variant | Length | Width (without mirrors) | Width (with mirrors) |
| Defender 90 | 4,323mm | 1,996mm | 2,105mm |
| Defender 110 | 4,758mm | 1,996mm | 2,105mm |
| Defender 130 | 5,358mm | 1,996mm | 2,105mm |
The Defender 110 is 1,996mm wide, which is 16mm narrower than 2 metres. That is 2,105mm when the mirrors are folded out.
There is clearance, but not in the way you think, as standard UK parking bays are 2,400mm wide, so there is room when you’re trying to park next to a poorly parked BMW in a supermarket.
The Land Rover Defender 130 dimensions are quite long, making it a true long vehicle. It is 5,358mm long, longer than a Mercedes-Benz Vito van. Urban driving is manageable, but multi-storey car parks with tight turning decks are where it gets uncomfortable.

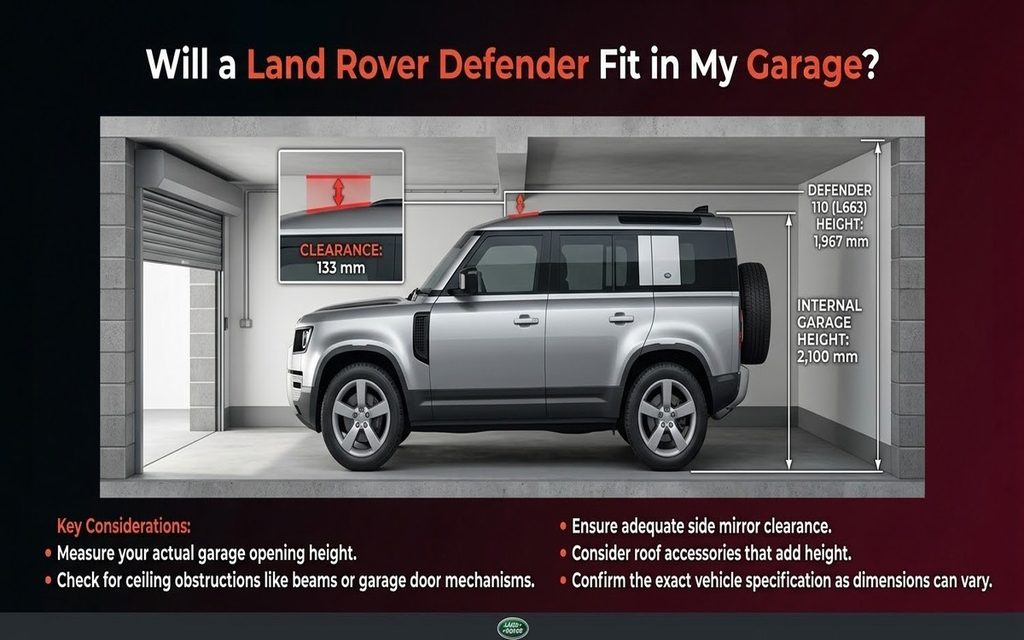

Will A Defender Fit In My Garage?
It’s the question behind the question most of the time. People searching how tall is a Land Rover Defender often want to know if it fits in their garage before they buy.
The internal heights of standard UK single garages range from 2,000mm to 2,200mm, typically 2,100mm in homes built since the 1980s.
At 1,967mm, the Defender 110 fits a 2,100mm garage with 133mm to spare. This is all well and good until you add roof rails (50-80mm) or a full roof rack system (100-150mm).
Check three things before assuming your Defender fits:
- The lowest level of the garage, usually a beam, lintel or light fitting rather than the door frame.
- If your garage door is a roller door (which is mounted at the top of the garage) or a hinged/up-and-over door (which swings inward when opening, thus limiting the amount of space available when opening the door).
- The floor should be level; if it slopes, a driveway leading into the garage will change the approach height.
A Defender 110 with a Thule roof box at 2,250mm will not fit into a standard height garage. It’s important to know before purchasing the box.
Car Park Height Barriers: What To Watch For
The majority of multi-storey car parks in the UK have a fixed beam entry barrier. Common heights:
| Barrier height | Can a standard Defender 110 fit? |
| 1,800mm | No |
| 1,900mm | No |
| 2,000mm | Yes; 33mm clearance |
| 2,100mm | Yes; 133mm clearance |
| 2,200mm | Yes; 233mm clearance |
| 2,000mm with roof rack/box | Likely no |
In the UK, the typical size of a supermarket car park is 2,000mm to 2,100mm. The issue is underground city centre car parks, which are usually 1,900mm or smaller in older buildings.
It is worth bookmarking the NCP and Q-Park apps as they both indicate the height restrictions for each car park, which is handy if you drive a Defender every day in an urban area.
The Land Rover Defender height with a roof box or roof tent is normally 2,150mm to 2,400mm depending on the box or tent. From then on, you are left with the option of outdoor surface car parks.
Defender Height Vs Competitors:
The Defender is frequently compared to the Mercedes-Benz G-Class and Toyota Land Cruiser.
| Vehicle | Height |
| Land Rover Defender 110 | 1,967mm |
| Mercedes-Benz G-Class W464 | 1,975mm |
| Toyota Land Cruiser 300 | 1,885mm |
| Jeep Wrangler JL 4-door | 1,843mm |
| Ineos Grenadier | 1,916mm |
The Defender is taller than the Land Cruiser and Wrangler. It’s 8mm behind the G-Class. The Land Cruiser’s 1,885mm height is the most accommodating in low-clearance situations, but it sacrifices the Defender’s range of off-road electronics.

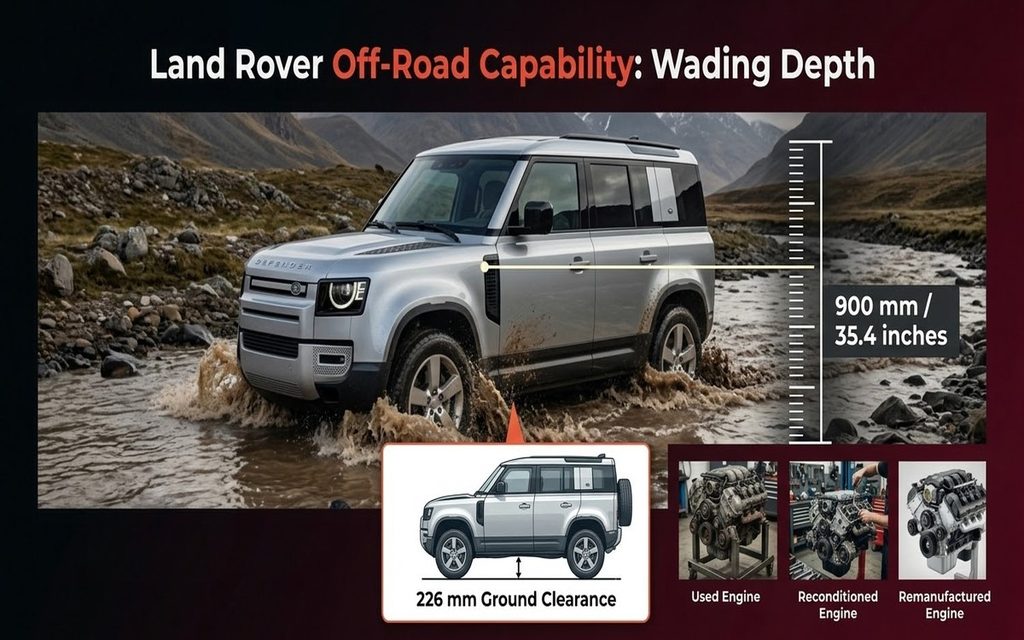

Wading Depth: The Other Vertical Dimension Worth Knowing
Land Rover Defender wading depth is 900mm (35.4 inches). This is the number for a standard Defender 110 L663 without modifications.
For comparison, 900mm will get you to mid-door on an average adult. One of the deepest 4x4s in production, the G-Class can reach 700mm, while the Land Cruiser can reach 700mm. This is a real-world capability, not a claimed figure with a lot of caveats.
Land Rover Defender ground clearance of 226mm works alongside the wading depth to handle terrain that stops most other vehicles. Defenders are found in recovery work, military applications and off-road competitions where other vehicles are not allowed because of the combination of 226mm ground clearance and 900mm wading depth.
FAQs:
What is the height of a Land Rover Defender 110?
The Land Rover Defender 110 is 1,967mm (6 feet 5.4 inches) tall when unladen. Include 50- 150 mm for roof rails or a roof rack.
What is the Land Rover Defender 90 height?
The 90 is 1,969mm high, 2mm higher than the 110, thanks to suspension geometry, and has a ground clearance of 226mm, the same as the 110.
What is the height of a Land Rover Defender 130?
The dimensions of the Land Rover Defender 130 are: length 5,358mm, width 1,996mm (2,105mm with mirrors), height 1,975mm. It’s 600mm longer than the 110 and the tallest of the three body styles.
Will a Defender 110 fit in a standard UK garage?
Yes, a standard Defender 110 will fit in a 2100mm-high garage with around 133mm of headroom. This is greatly reduced by roof racks and boxes. With a roof box, the Land Rover Defender can be as tall as 2,200- 2,400 mm.
How deep can the Land Rover Defender go in water?
The wading depth of the Land Rover Defender is 900mm on a standard L663 110 and 90, one of the deepest of any production 4×4.
What is the width of a Defender 110?
Land Rover Defender width: 1,996mm (without mirrors) and 2,105mm (with mirrors extended). The Land Rover Defender 110 is one of the biggest vehicles in its class, with a height and width that combine for a large size.
Conclusion:
At 1,967mm tall, 1,996mm wide and 226mm off the ground, the Defender can handle the places it’s meant to handle and sometimes the places it’s not.
Before purchasing a roof box, before booking that underground car park and definitely before you take it for granted that it fits in the garage, you need to know the numbers.
