The Land Rover LR3 transmission fault message comes as a surprise to owners. One minute the LR3 is working perfectly. When the next gear selector displays “F”, the dashboard will display “Special Programmes Unavailable” and the car will either operate in one gear or stop running altogether.
There are a number of things to check before paying £3,000 at a dealer, as many Land Rover LR3 transmission fault warnings aren’t actually gearbox related.
This guide takes you through all the fault scenarios, starting with the least expensive and ending with the most expensive.
What Does Transmission Fault Actually Mean on an LR3?
The Discovery 3 transmission fault message includes a variety of faults. LR3 and Discovery 3 are the same car; LR3 is the North American name and Discovery 3 is the UK name. Both feature a ZF 6HP26 automatic gearbox.
The warning is triggered by three things: a true gearbox or TCM (Transmission Control Module) fault, a battery voltage drop, or a sensor and selector cable fault that causes the TCM to report a gearbox fault.
Steps To Repair A Transmission Fault on LR3:
Step 1: Check the Battery First
The ZF 6HP26 gearbox in the LR3 is voltage sensitive. At rest below about 12.2V, the TCM begins to store fault codes and activate transmission warning messages, which appear as gearbox issues.
The LR3 gearbox fault is self-clearing when voltage is restored, hence the owners’ reports that the fault goes away after a few restarts.
Also check the earth strap behind the driver’s side front wheel arch liner. This is the fault that occurs in Discovery 3 models due to corroded earth connections. If the battery and earths are found to be good, proceed to Step 2.
Step 2: Perform an SDD Diagnostic Scan
The “F” display stores fault codes in the TCM module, and the Land Rover LR3 limp mode. The standard OBD-II reader will detect generic transmission codes, such as P0700 (transmission control system malfunction) and P0730 (incorrect gear ratio), which are the two most common codes on an LR3.
SDD (Symptom-Driven Diagnostics) or a Nano-COM tool reads the entire JLR-specific fault picture, including TCM module codes, Terrain Response integration faults and HDC (Hill Descent Control) errors that are displayed in tandem with transmission warnings.
The Discovery 3 Special Programmes Unavailable message will display when the Terrain Response system is unable to communicate with the gearbox TCM. This is usually a secondary fault caused by a battery or selector cable problem, and not a fault in the gearbox itself.
If U0101 or C1A00 codes are seen on the scan and no transmission-specific mechanical codes, it is almost always battery, earth or wiring.
LR3 gearbox fault codes to look for:
- P0700: transmission control system fault
- P0730: Incorrect Gear Ratio
- P0751: shift solenoid A performance
- P0826: up/down shift switch input circuit
- C1A00: Terrain Response TCM communication lost
- U0101: Communication with TCM lost
Step 3: Check the Gear Selector Cable
The second most common overlooked cause is the gear selector cable on the Discovery 3 transmission fault list. The cable is a link between the gear lever and the gearbox, and over time it wears at the selector end, especially on higher-mileage LR3s over 80,000 miles.
The TCM will lose gear position confirmation when the selector cable is worn. If a gear is selected, it defaults to “F” since it is not able to confirm the selected gear. Replacement of the cable is £80-£150, and the work takes 2-3 hours at a workshop.
Inspect for play in the gear lever before and after gear selection. If there is over 3- 4 mm of play at the end of the lever in Drive or Reverse, it indicates that the cable is worn. This is confirmed by the LR3 gearbox fault codes P0826 and selector position sensor faults that are stored in the TCM.
Step 4: Check the ZF Gearbox Fluid
The ZF 6HP26 gearbox Land Rover has a lifetime-fill fluid that will fail after 80,000 miles; change it anyway.
If the transmission fluid has turned dark, has a burnt smell or has metallic particles on the drain plug magnet, it needs to be changed. The cost of a ZF 6HP26 fluid change is £200 to £350, and a large proportion of Land Rover LR3 limp mode events are caused by a fluid change issue with no mechanical fault.
It is also time to evaluate the ZF 6HP26 gearbox Land Rover mechatronic unit. The mechatronic unit containing the solenoid pack and TCM is located in the gearbox sump.
Dirty fluid will cause solenoids to fail, resulting in shift hesitation, gear loss and P0751/P0756 codes. A reconditioned mechatronic unit costs £400–£800; a new ZF unit costs £900–£1,400.

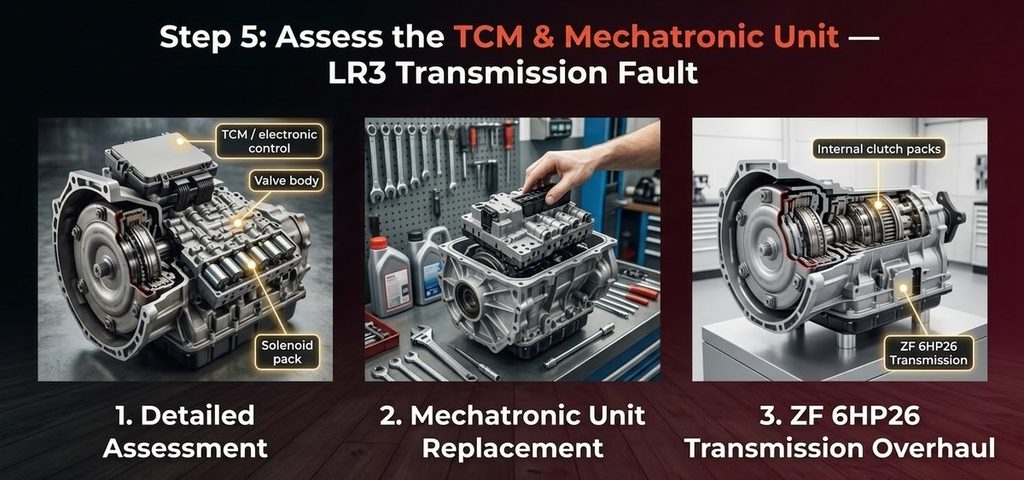

Step 5: Assess the TCM and Mechatronic Unit
If the fluid, battery, earths and selector cable are all eliminated, then the fault is within the gearbox.
The Land Rover LR3 TCM fault code is related to a mechatronic solenoid pack, a damaged valve body or internal clutch pack wear. To determine which, strip-down and assessment are the only way.
Only replacing the LR3 gearbox solenoid without a full fluid change is not a permanent cure. Solenoids and fluid should be treated as a unit. An LR3 gearbox solenoid replacement as a standalone job is a half-measure if degraded Land Rover LR3 transmission fluid caused the solenoid failure in the first place.
| Repair Option | Cost Range | Warranty |
| Battery + earth strap | £25–£150 | N/A |
| Selector cable replacement | £150–£300 fitted | 6–12 months |
| Fluid change + solenoid service | £350–£600 | 6 months |
| Reconditioned mechatronic unit | £600–£1,200 fitted | 12 months |
| Fully reconditioned ZF 6HP26 gearbox | £1,800–£3,500 fitted | 12–24 months |
| New ZF gearbox (main dealer) | £4,500–£6,000 fitted | 12 months |
When the diagnosis is correct the first time, the majority of transmission faults can be resolved with a battery, earth, selector cable or fluid change, and the LR3 transmission fault repair cost is, in most cases, less than £500.
FAQs:
What is the reason for the Land Rover LR3 transmission fault warning?
There are 4 main causes of the Land Rover LR3 transmission fault: battery voltage dropping below 12.2V, a worn selector cable, degraded ZF 6HP26 fluid leading to solenoid sticking and a faulty mechatronic unit. A significant percentage of cases are due to battery and earth problems.
What does the “F” stand for on the Land Rover LR3 gear display?
“F” indicates that the TCM has lost positional confirmation of the selected gear. A fault in the LR3 gearbox has activated a default fixed gear mode, which is a result of battery failure, a worn selector cable or a mechatronic fault.
What is “Special Programmes Unavailable” on a Discovery 3?
Discovery 3 Special Programmes Unavailable indicates that Terrain Response has lost communication with the gearbox TCM. It is accompanied by the transmission fault and is typically caused by a U0101 communication code (battery or wiring fault) and not a mechanical gearbox failure.
What is the cost of repairing LR3 transmission?
The cost of repairing a transmission fault on the LR3 varies from £25 for a battery to £1,200 for a reconditioned mechatronic unit, and up to £1,800–£3,500 for a full reconditioned ZF 6HP26 supply and fit. When diagnosed first, most faults can be fixed at a cost of less than £500.
Should the ZF 6HP26 gearbox oil be changed on a Land Rover LR3?
Yes, Land Rover LR3 transmission fluid is recommended to be changed every 60,000 to 80,000 miles, even though it is labelled as “lifetime fill”. The transmission warning is triggered by Land Rover LR3 TCM fault events, which are caused by degraded fluid.
Conclusion:
Most of the time, the Discovery 3 transmission fault can be solved without replacing the entire gearbox: battery first, scan second, fluid and selector cable before the mechatronic unit; full rebuild only when everything else is clean.
