Most guides on how to change a battery in a Range Rover key only talk about the basic steps of the process. They instruct you to open the fob, change the CR2032 battery, close the case and leave.

What they don’t address is what happens if the fob still doesn’t work, and for an outstanding number of Range Rover owners, that’s exactly what happens.

This guide will explain the entire story: the battery swap itself, all of the possible reasons for the fob not working after the swap, and how to get into your car if the battery is already completely dead.

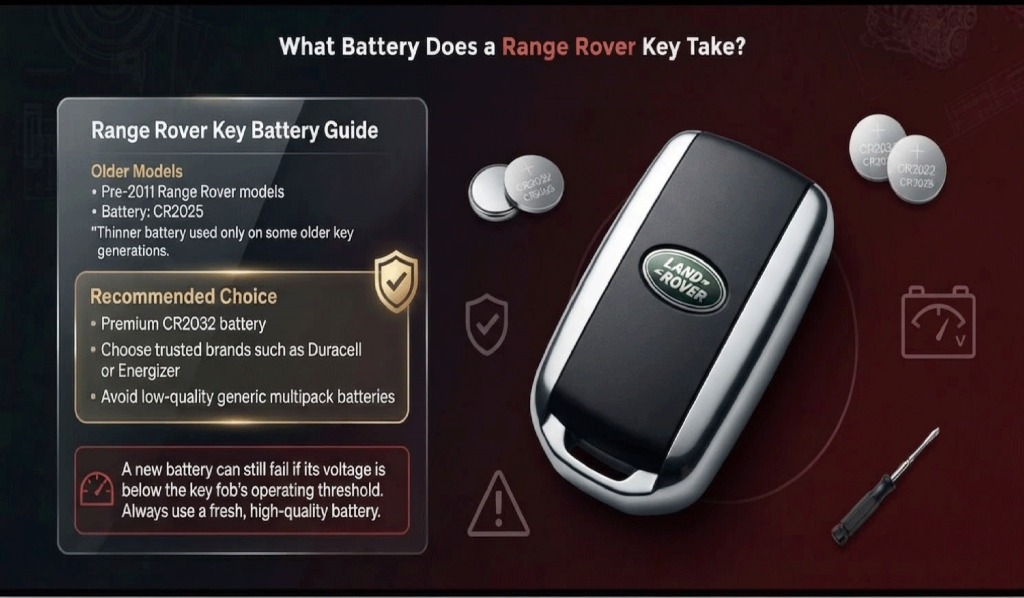

What Battery Does a Range Rover Key Take?

For most of the current range of Range Rover key fobs, the CR2032 coin cell battery is the correct size. It is used on all models of the Evoque, Velar, Sport and Defender.

Some older pre-2011 models have a CR2025, which is thinner and slightly smaller, but are not used regularly these days.

Purchase a Duracell or Energiser CR2032 (not a generic multipack). A low-cost battery can come out of the box and read as dead in the fob, as the voltage is just below the receiver threshold in the fob.

This is one of the most frequent reasons for failing after a swap, and most people don’t consider testing the battery first.

Key Fob Battery Replacement: How to Open and Change the Battery in a Range Rover Key Fob

Steps for the Standard Smart Key (Evoque, Sport, Velar, Defender):

To change a battery in a Range Rover key fob on any current smart key design:

1. Press the small release button on the side or base of the fob to slide out the emergency key blade. Put the blade aside; it will be used to open the casing.
2. Once the blade is removed, find the seam at the end of the fob where the blade was placed. Use the tip of the blade (or a flat coin) and twist to open the casing in half. The newer Defender and Sport L461 fobs have a housing that is easily marked by a metal screwdriver.
3. Before removing the old CR2032 battery, note the direction of the battery. The positive (+) side is up on all existing JLR fobs.
4. Use a fingernail to remove the old battery. Do not touch the faces of the new battery with your bare hands (skin oils and moisture will transfer to the contacts and speed up corrosion, reducing battery life by several months).
5. Place the new CR2032 in with the positive side facing up. Press it snugly into the housing, making sure it is flat against both contact points.
6. Fasten the two halves of the casing together again until they click. Replace the emergency blade.
7. Press the lock or unlock button from a distance of 5 metres. The central locking should operate within 1-2 presses.

My Range Rover Key Fob Still Isn’t Working, Now What?

There are 5 root causes for a Range Rover key fob failure after a battery change, each with a different solution. Solve them in order before calling a dealer.

Step 1: Remove A Dead Battery From The Packet

If you have a second CR2032, test it with the second one before assuming that the battery is bad. A new Duracell from a supermarket that was stored in warm conditions for 12 months can be weak enough not to be picked up by the fob’s receiver. If the fob operates when used with the second battery, the first battery is faulty.

Step 2: Look for Radio Frequency Interference (RFI)

The Range Rover key fob resync process can be completely interrupted by radio frequency (RF) interference from other transmitters, such as garage door openers, home smart systems, or even proximity to a commercial radio mast.

Owners on Evoque forums have reported fob failures that have been resolved after they moved the car away from a home Wi-Fi router or an airfield control tower. Before assuming it requires reprogramming, try the fob 50 metres from your property.

Step 3: Resync the Fob

To manually reset the Range Rover Evoque key fob battery or the Range Rover Sport fob:

• Get into the vehicle and close all doors.
• Turn the ignition to position 1, then back to 0, and remove the key within 5 seconds.
• Hold the unlock button down for 30 seconds, then press lock 3 times while holding unlock.
• Tap the unlock button to unlock. The central locking should cycle to verify sync.
• On keyless push-button models (Velar, post-2019 Evoque), this sequence doesn’t apply. Rather, unplug the negative terminal of the 12V vehicle battery for 2 minutes, then plug it back in. This resets the receiver module and has resolved Range Rover Velar key fob not working issues in numerous forum cases without a dealer visit.

Step 4: Check the Fuse Box

On older Sport L494 and L322 models, a blown fuse will render the RF receiver inoperative, regardless of battery charge; that is, the car will not receive the fob’s signal. Look at fuse 40 (5A, Key In Sensor) and fuse 43 (10A, RF Receiver) in the passenger compartment fuse box. Remove each fuse, check the filament and replace it securely, even if it appears to be in good condition. A fuse that is not properly installed is considered a dead circuit.

Step 5: Discharge Residual Power, Then Reconnect

Discharge any remaining charge from the circuit board by removing the battery from the fob, pressing and holding the lock button for 10 seconds, then installing the new battery.

In some older Evoque and Freelander-era fobs, there is a residual charge in the PCB that prevents the new battery from registering properly until the board is completely discharged.

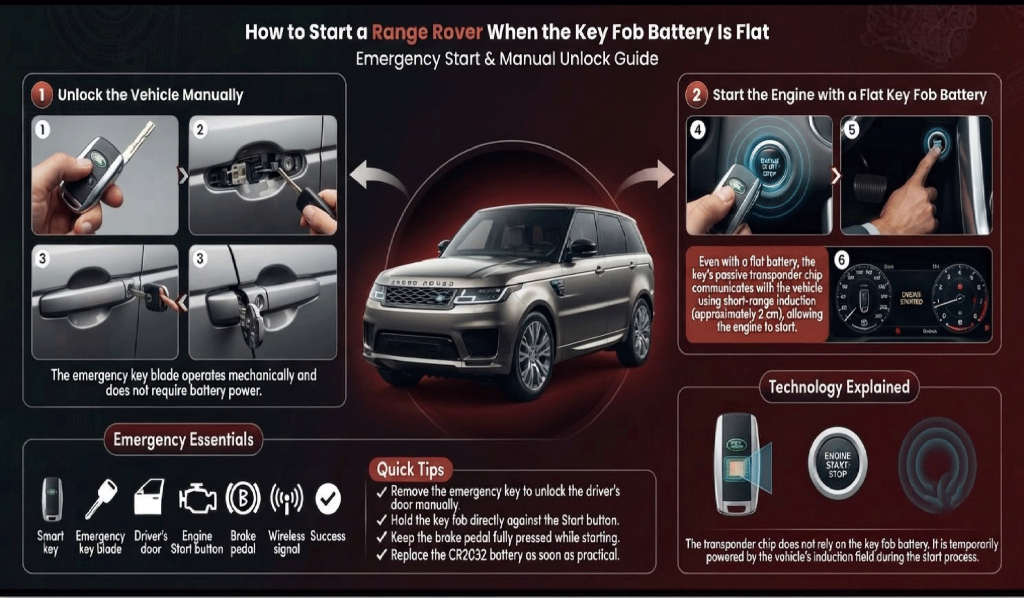

How to Start a Range Rover When the Key Fob Battery Is Flat:

To start a Range Rover with a dead key fob battery, press the fob against the engine start button and press the button while holding the brake pedal. The car reads the transponder chip using short-range induction at a distance of about 2 centimetres. This is not battery-powered; the chip is passive and is energised by the car’s induction field.

To enter the car first, press the emergency key blade into the fob release (this is a mechanical release and does not require battery power), find the hidden keyhole in the driver’s door handle surround and insert the key blade to unlock the car manually.

FAQs:

What size battery does a Range Rover key fob take?

Almost all current Range Rover models use a CR2032 coin cell battery. A few older Evoque and Freelander-era fobs use a CR2025. If in doubt, refer to your owner’s manual.

Why is my Range Rover key fob not working after a battery change?

If your Range Rover key fob is not working after battery replacement, it is likely that the battery terminals have become corroded. The fob is probably out of communication with the vehicle. Use the physical key to lock and unlock, then sit in with the ignition on and press the lock button on the fob. This typically restores the link in one or two tries.

Will a dead key fob battery start my Range Rover?

Yes, hold the fob against the start button directly and press. The car will read the transponder chip by induction, without requiring battery power in the fob.

What is the battery life of a Range Rover key fob?

Usually 2-3 years of normal use. The first indicator is typically a loss of range; you need to be closer to the car to see it respond, and then a warning light on the dashboard for most cars built after 2018.

Will the Range Rover key need to be reprogrammed when changing the battery?

No, a battery swap does not need to be programmed. If the fob loses contact with the car’s receiver, it will require a resync, but this is not a programming task, just a 30-second process.

Conclusion:

Changing the battery in a Range Rover key is a 3-minute job. The problem is not the swap; it’s what to do if the fob doesn’t come back to life after the swap. Before you spend any money at a Land Rover dealer, go through the 5-step fault sequence: bad battery from the packet, RF interference, resync procedure, fuse check, and PCB discharge.

The majority of failures occur at steps 1 or 3. If none of those work and the fob circuit board is actually faulty, then a new fob must be programmed to the vehicle, which requires JLR-compatible diagnostic equipment.
